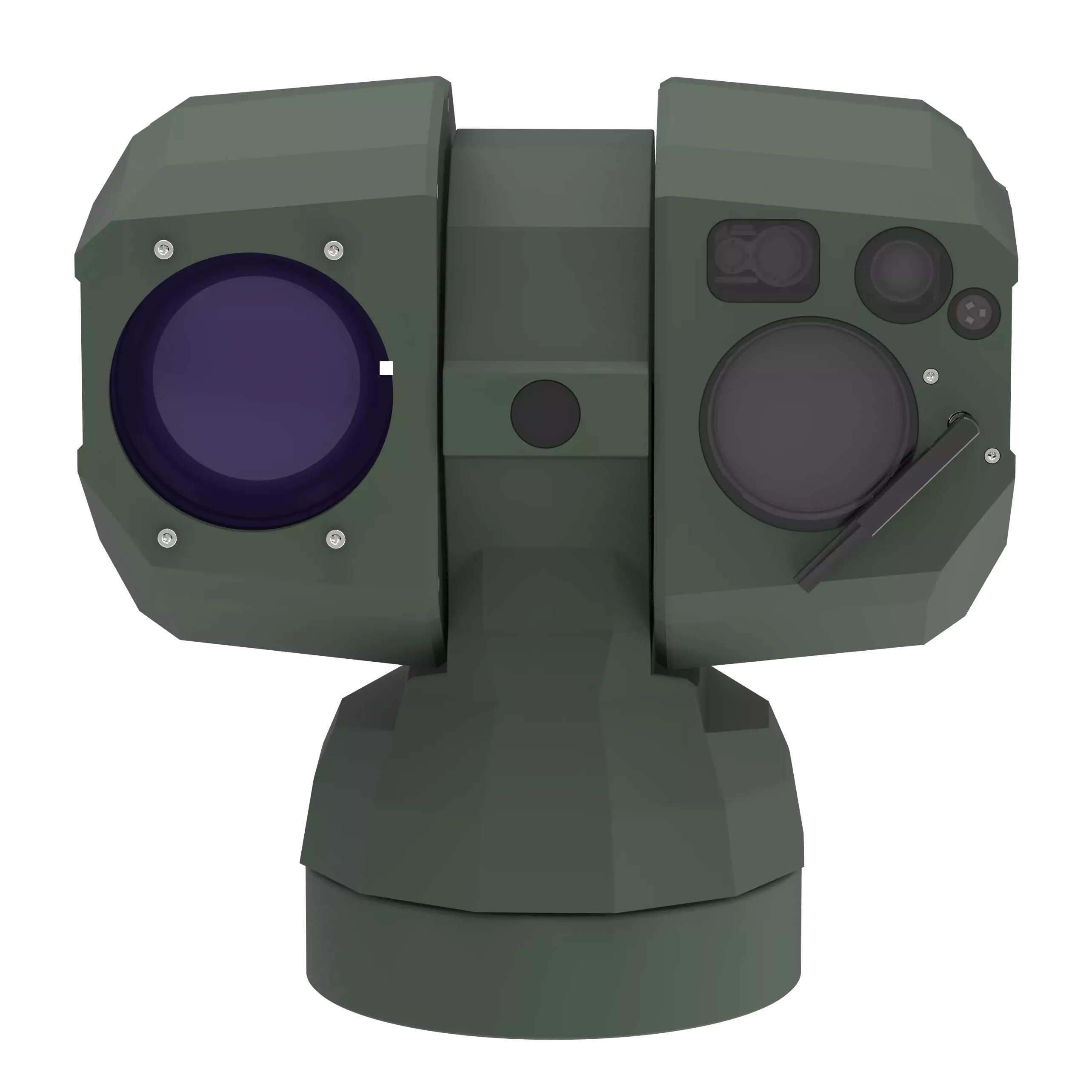

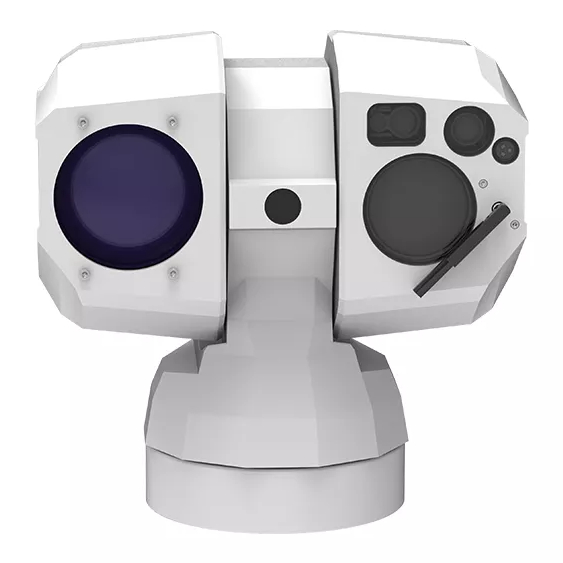

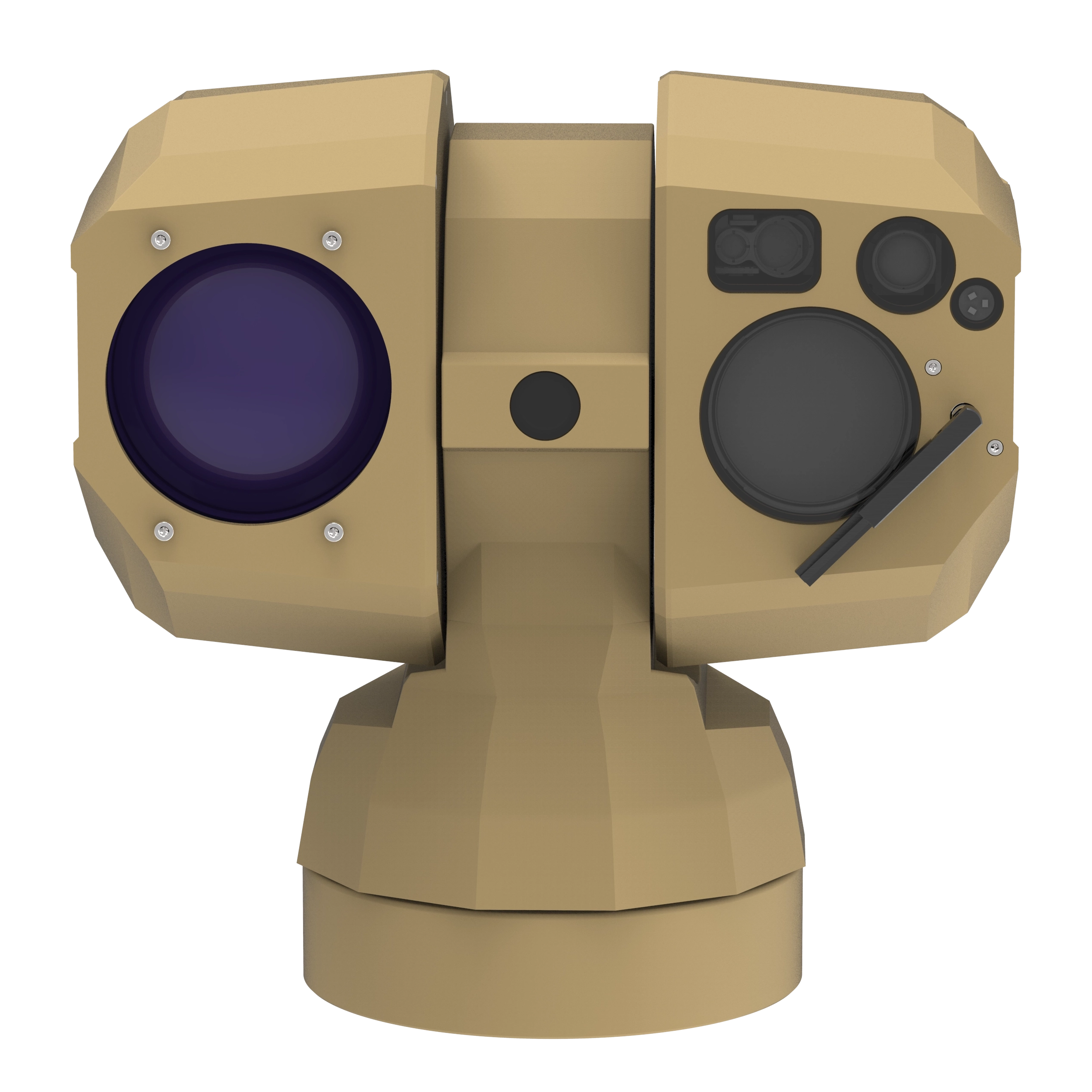

T-D-001
Product Characteristics
The DMD system features an extremely wide dynamic range of speed, ultra-high angular acceleration, and a highly sensitive overall response
Through the advanced control algorithm of the DMD system, the pan-tilt features extremely low standby and operational power consumption
Adopting a direct drive system, by directly driving the load, energy loss is reduced and the energy efficiency ratio is higher. Low noise, low maintenance cost, precise control and long service life
It has a position locking function and can quickly recover when it is offset by external force
The tilt axis system can be equipped with an absolute Angle sensor
Optional features include automatic wipers and auxiliary lights, etc
It has the ability to prevent surges and spikes, and is suitable for various application scenarios
The interior can be flexibly configured with various payloads, supporting modules such as infrared thermal imaging, laser ranging, fill light, wide-angle lens, etc
All-weather indoor and outdoor operation, with a protection level of IP66
Specification Parameters
Pan Tilt Hardware Part
| Outline structure | Spheroid |

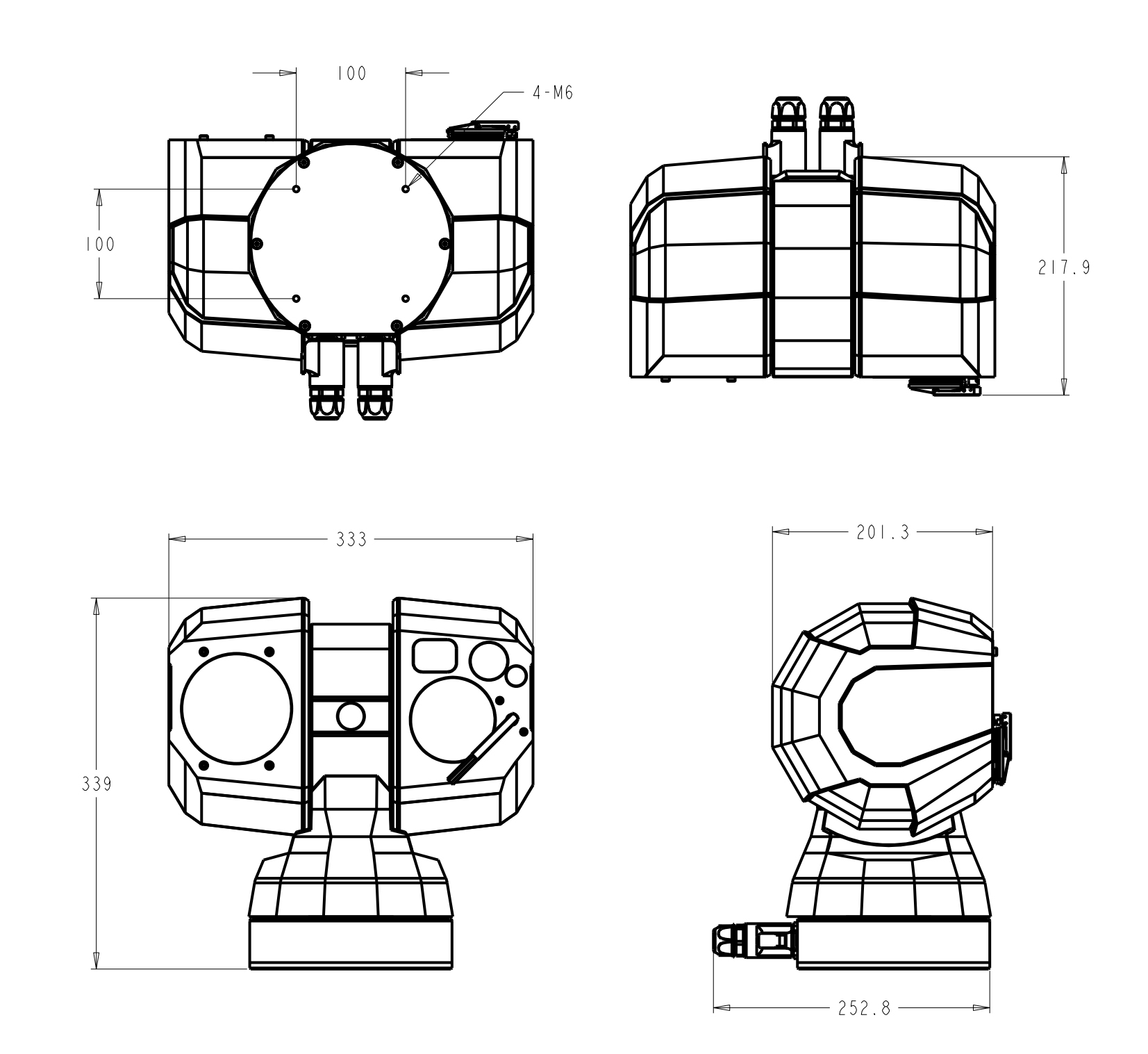

Max dimensions | H 339mm* L 333mm* W 217.9mm |
Window | Multiple windows |
Wiper | Support intelligent automatic windshield wipers |
Rotation range | Pan 360°continuous rotation, tilt ±90° |
Speed range | Pan 0.01~160°/s, tilt 0.01~100°/s |
Max acceleration | Pan 300°/s², tilt 240°/s² |
Positional accuracy | ＜0.05° |
Positioning time | ≤1s |
Position limitation | The pan and tilt axis have custom limit functions |
Speed adaptation | It has the functions of camera zoom ratio and speed change |
Zero-position setting | Setting of the zero points for the pan and tilt axis motions |
Preset bits | 256(Standard), 2048(Extendable) |
Scan path | Support preset point cruise, line scan, apple peel, and pattern scanning. The scanning speed can be set |
Active protection | Internal automatic temperature control design, lightning protection and surge prevention design, turntable overcurrent protection, position change self-recovery function, absolute angle position |
Drive mode | Using a torque motor for direct drive, it can achieve rapid start and stop, and smoothly and seamlessly synchronizes with the radar for tracking |
lVisible camera, thermal camera, rangefinder, laser illumination and wide angle camera, 5-in-1
lDirect drive torque motor for high accuracy and fast rotation
lFull HD 8 MP 3840x2160@30fps real-time images
l10-550mm, 55X optical zoom
lThermal image 640x512, NETD sensitivity≤ 35mK @F1.0,300K
l3km laser ranging, 1535nm wavelength
l500m laser illumination;
lHorizontal and vertical stabilization, dynamic adjustment to offset the external vibration of the pan-tilt unit and ensure the stability of image quality.
lAI-AF deep learning , focusing on faster speed and more stable focus
lSupport webrtc and flv preview
lSupport backlight compensation, automatic electronic shutter and other functions to adapt to different monitoring environments
lSupport 3D digital noise reduction, strong light suppression, heat wave removal;
lSupports max. 512G Micro SD storage
lSupports ONVIF and GB/T28181 access
lSupport human, non-motor vehicle, motor vehicle, boat and bird detection algorithm;
| Product | ZT5 D-Series | ||||
| Thermal Camera | |||||
Type of probe | Vanadium oxide non-cooling infrared detector | ||||
Effective Pixels | 640x512 | ||||
Pixel pitch | 12µm | ||||
Spectral range | 8~14µm | ||||
Sensitivity (NETD) | ≤35 mK @F1.0, 300K | ||||
Lens type | Fixed or Zoom lens | ||||
Focal length | 50mm | 75mm | 100mm | 25-75mm | 15-100mm |
Digital zoom | 2X, 4X, 8X | ||||
Aperture | F1.0 | 25mm（F0.9）-75mm（F1.1） | 15mm（F0.85）-100mm（F1.25） | ||
FOV | 8.8°x7.0° | 5.9°x4.7° | 4.4°X3.5° | 17.5°X14.0°~5.9°X4.7° | 28.7°X 23.1°~4.4° X 3.5° |
Focus range | 3M~∞ | 5M~∞ | 10M~∞ | 5M~∞（25MM） 10M~∞（75MM） | 5M~∞（15MM） 10M~∞（100MM） |
Image settings | Brightness, contrast, and gamma are adjustable through the client or browser | ||||
| Pseudo Color | 10 modes available, white hot/ black hot/golden autumn/rainbow/iron red, etc. | ||||
| Image enhancement | Supports 0-255 level adjustment | ||||
| Bad pixel correction | Support | ||||
| Image noise reduction | Support | ||||
| Image Flip | 180°, Mirror | ||||
| Shockproof | Electronic anti-shake, 1-3 level adjustment | ||||
| Visible Camera | |||
| Sensor type | 1/2.8”; | 1/1.8”; | 1/1.25” |
| Resolution | 1920x1080@25/30fps 60fps optional | 2688x1520@25/30fps 60fps optional | |
| Min. Illumination¹ | Color: 0.0005 Lux ; Black and white: 0.0001Lux | ||
| Shutter | 1/25s to 1/100,000s; Support delayed shutter | ||
| Day/Night Switch | ICR infrared filter type; automatic, manual, timing, serial port trigger, alarm trigger | ||
| Focal length | 7~322mm | 6.6~264mm | 10~550mm |
| Aperture | F1.8-F6.5; | F1.61-F5.19; | F1.5-F5.5 |
| Field of view (H, V, D) | H:42-1° (wide-tele) | H:59.20-1.93° (wide-tele) | H:42.80-0.80° (wide-tele) |
| V:24-0.6° (wide-tele) | V:34.82-1.14° (wide-tele) | V:24.90-0.50° (wide-tele) | |
| D:47.7-1.26° (wide-tele) | D:68.68-2.24° (wide-tele) | D:48.50-0.90° (wide-tele) | |
| Image Settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser | ||
| BLC,HLC,WDR | Support | ||
| Defog | E-Defog | ||
| Day/night switching | Automatic, manual, timing, alarm trigger | ||
| 3DNR | Support | ||
| Image overlay | Support BMP 24-bit image overlay, customizable area | ||
| Region of interest | Support three streams and four fixed areas | ||
| Electronic slow shutter | X2—X24 | ||
| Distortion correction | Support, 0-100 level adjustment | ||
| Shockproof | Electronic anti-shake, 1-3 level adjustment | ||
| Illumination | |
| Laser distance | ≥500m |
| The light emission band | 850nm±10nm (940nm optional) |
| The Angle of the light | Electrically synchronized zoom, Far Angle 2°: effective distance>500m, spot diameter <36m; Near Angle 70°: effective distance>40m; |
| Time to change ratio | ≤ 3 seconds (far to near) |
| Image | |
| Main stream | Thermal: 25fps(1920x1080, 1280x1024, 640x512); Visible: 25fps/30fps (3840x2160, 2688x1520, 1920x1080, 1280x960, 1280x720);@8MP 25fps/30fps (2688×1520, 2560x1440, 1920x1080, 1280x960, 1280x720);@4MP 25fps/30fps (1920x1080, 1280x960, 1280x720);@2MP |
| Sub-stream | Thermal: 25fps(640x512); Visible: 25fps (1280×720, 704x576, 640x480, 352x288) @8MP/4MP 25fps (704x576, 640x480 ,352x288) @2MP 30fps (1280×720, 704x480, 640x480, 352x240)@8MP/4MP 30fps (704x480, 640x480, 352x240)@2MP |
| Third stream | Visible: 25fps (704x576, 640x480, 352x288) 30fps (704x480, 640x480, 352x240) Only for Model ZT5-M02E-L0xxx 25fps (1920×1080, 1280×720,704×576, 640×480, 352×288) 30fps (1920×1080, 1280×720,704×480, 640×480, 352×240) |
| Area-of-interest | Supports three streams and sets four fixed areas respectively |
| Picture in picture | Supports overlay display of picture-in-picture |
| Video coding | H.265/H.264/MJPEG |
| H.265 picture quality | Main Profile |
| H.264 picture quality | BaseLine Profile / Main Profile / High Profile |
| Video compression | 32 Kbps~16Mbps |
| Audio coding | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) |
| Network | |
| Memory function | Supports Micro SD/SDHC /SDXC card (512G) for offline local storage and NAS (NFS, SMB/CIFS supported) |
| Support agreement | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 |
| Interface protocol | ONVIF (PROFILE S, PROFILE G), GB28181-2016, mainstream manufacturers protocol |
| Smart Function | |
| General events | Mobile detection, video blocking, disk full, illegal access |
| Smart intelligence | Area intrusion, boundary detection, leaving the area, wandering detection, personnel gathering, rapid movement, item left detection, audio anomaly |
| Smart detection | Humanoid detection, non-motor vehicle detection, motor vehicle detection, boat detection, flying bird detection |
| General | |
| Working temperature and humidity | -40℃~65℃, humidity less than 90% (no condensation) |
| Voltage | DC24V±20% |
| Power | Configuration dependent |
| Power protection | TVS 8000V lightning protection, surge protection, anti-sudden wave, in line with GB/T17626.5 level 4 standard |
| Weight | Configuration dependent |
| Ordering Information² | ||
| Model | Description | |
| ZT5-M02E-L0xxx | Thermal:50mm; | Visible:6.6~264mm, 1/1.8” |
| ZT5-M02E-Z0xxx | Thermal:75mm; | Visible:7~322mm, 1/2.8” |
| ZT5-M02E-G0xxx | Thermal:100mm; | Visible:10~550mm, 1/1.25” |
| ZT5-M02A-GZ0xxx | Thermal:25-75mm; | Visible:7~322mm, 1/2.8” |
| ZT5-M02A-G0xxx | Thermal:15-100mm; | Visible:10~550mm,1/1.25” |
| Optional Configurations | Wide angle camera; Rangefinder; Gyroscope;Compass;Digital compass;etc. | |
| DRI³ | ||||||
| Vehicle (4mx1.4m) | Human (1.8mx0.5m) | |||||
| Detection | Recognition | Identification | Detection | Recognition | Identification | |
| 50mm | 6500m | 1700m | 850m | 2600m | 660m | 330m |
| 75mm | 10200m | 2500m | 1280m | 3900m | 980m | 490m |
| 100mm | 13600m | 3400m | 1700m | 5200m | 1300m | 650m |
| Laser Illumination | |||
| Effective Distance | ≥800 m | The angle of the light | Far Angle 2.0° ：effective distance≥800 m ，spot diameter 28 m |
| The light emission band | 850±10nm | Near Angle 70° ：effective distance≥80 m ，spot diameter 112 m | |
| Laser safety level | Class 3B （ FDA、IEC ） | Working voltage | DC12V±10% |
| Laser safety distance | The minimum Angle: 15m | Working current | 1.2A±0.2A |
| Angle of Illumination | Electric synchronous zoom ，2.0° ~70°continuously adjustable ，Compatible with all 20X and 30X cameras available on the market | Overall power consumption | ≤17W |
| Output Power | 3.8±0.3W | Dimension | 64*27.4*40.6 mm（ L*W*H ） |
| Laser Ranging | ||||
| Spectral Response | 1535nm±10nm | Range Accuracy | ±2m(Optional±1m) | |
| Distance Measurement Capability | HC3001A | ≥5000m(Typical large target reference value) | Standard Test Frequency | ≥98% |
| ≥3000m(2.3m×4.6mStandard target plate or equivalent target) | Weight | ≤58g | ||
| ≥2000m*(People) | Dimension | ≤50mm×36.5mm×24mm | ||
| DYC3001A | ≥5200m(Typical large target reference value) | Stand-By Power Consumption | ≤0.5W | |
| ≥2100m*(People) | Operating Temperature | -40℃～60℃(Defense Grade) | ||
| ≥3200m(2.3m×4.6mStandard target plate or equivalent target) | Peak power | ≤3W@5Hz | ||
*Specifications in this document is subject to modifications without prior notification. Product pictures are for reference only, the actual product might differ.
