Flexibility & Stability, Intelligence & Precision
Pan Tilt With the progress of the times, it has been upgradeed and rennewed constantly. The core of the upgrade has always been to make the shooting picture more stable, the product utilization rate higher and the cost performance higher.

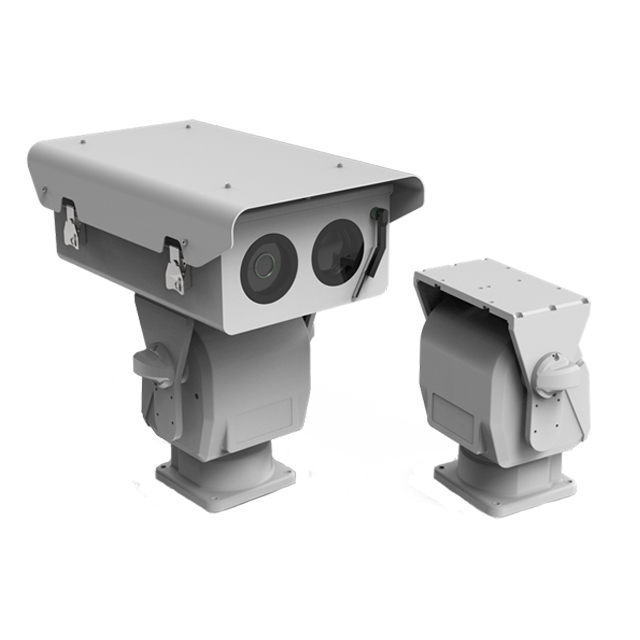

JEC PT2315HP Pan Tilt is an upgraded version of PT2315 Pan Tilt. This Pan Tilt uses a unique and innovative DMD technology. The Pan Tilt has a wider speed range. Its low speed is 10 times lower than that of PT2315, which can realize more precise low-speed control.
This Pan Tilt can be applied to medium-distance monitoring, optical image stabilization, optical haze penetration, high resolution and high zoom lenses. It can compensate light from a long distance and support AR functions. It can be widely used in scenes such as safe cities, roads, railways, iron towers, ports, bridges, petrochemical industries, and industrial parks.
Thanks to its DMD system, the 2315HP Pan Tilt can achieve the characteristic of fast response speed. It has a wide speed range of 0.01°~37°/s horizontally，0.01°~9°/s vertically, and the speed range can be customized, so that it can accurately capture the target even in rapidly changing situations.
The Pan Tilt adopts DC brushless motor three-closed-loop motion control mode to correct the error caused by vibration and wear in real time. Even if the accuracy is not affected for a long time, the error can reach≤0.05°,ensuring the accuracy of observation.
Integrated Pan Tilt is usually installed in the field, high places, such as mountains, towers, border and coastal defense, PT2315HP body weight is only 8 KG，greatly reducing the loss of manpower and material resources in installation and maintenance, its max dimensions:H293mm*L274mm*W175mm，making it easy to apply in different scenarios.
PT2315HP with a strong high strength aluminum alloy shell, protection level up to IP66, and can be customized IP67,can work at -40℃~65℃ temperature and ＜90% RH humidity, the Pan Tilt has excellent performance in both low temperature resistance and self-protection ability.
The standby power consumption of PT2315HP can reach only 6W, which greatly reduces the waste of energy, green environmental protection, reduces the loss of machinery during operation, and the service life of the equipment becomes longer.
In addition, the surface of the PT2315HP is also specially treated to meet the requirements of the three defense design, the overhead load form can carry a variety of loads, the reaction speed is fast, no lag feeling, and it is very convenient to use.
