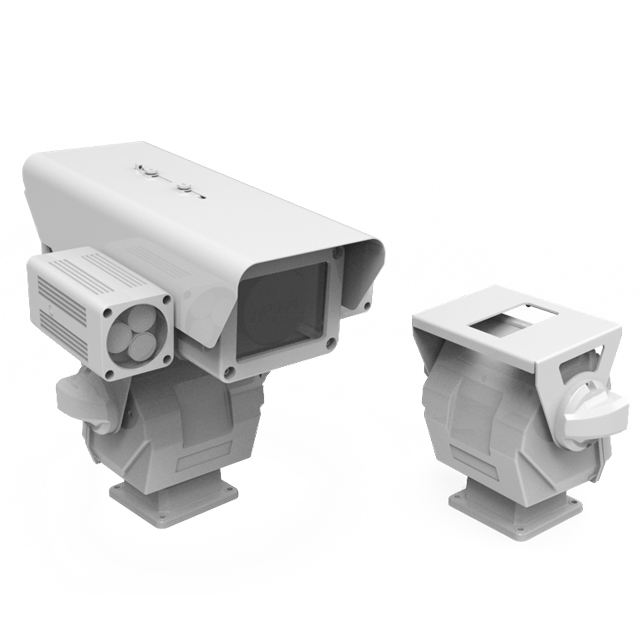

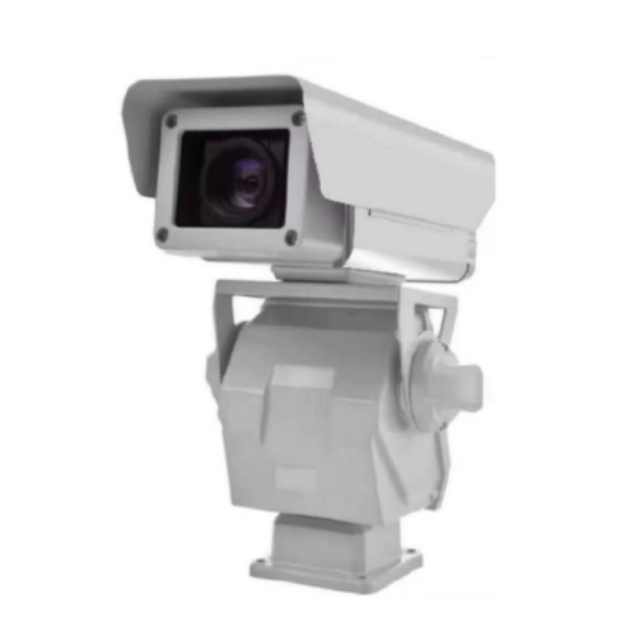

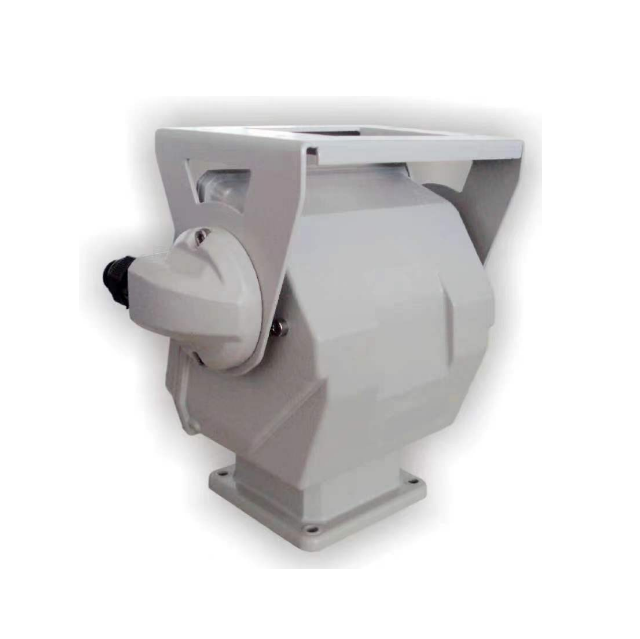

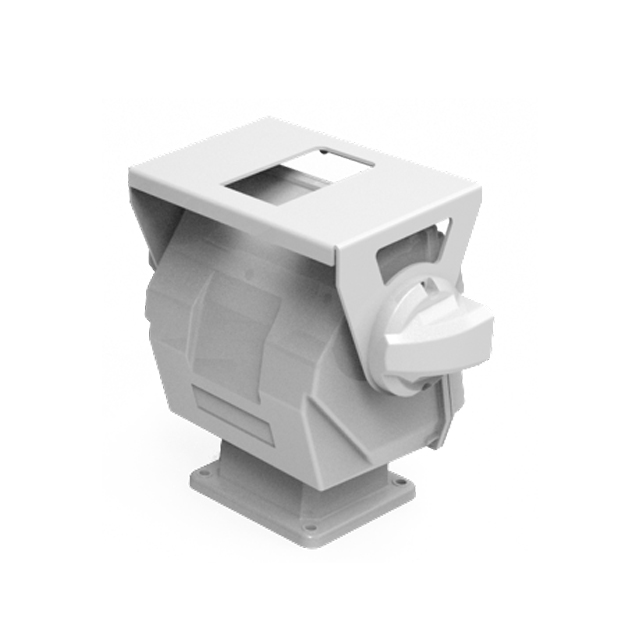

J-PT-1205

ØAll-weather environment design

ØHigh strength aluminum alloy shell, waterproof, high temperature resistance, aging resistance, corrosion resistance

ØAdopt brushless DC motor with gearbox drive, low power consumption, high reliability, energy saving and environmental protection

ØAdopt high precision digital absolute position encoder, no need to check on power, no preset cumulative deviation

ØWith the performance of starting at ultra-low temperature

ØFast response, no lag, flexible and convenient operation

ØOptional preset function, can set 255 presets

ØProtection grade IP66, the surface after special treatment to meet the requirements of three proof

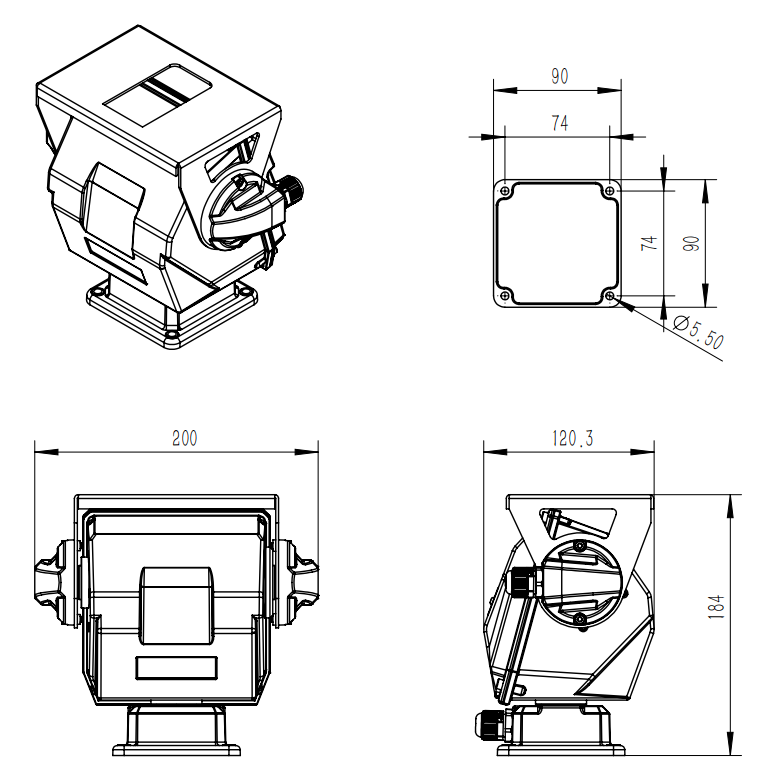

 Pan Tilt Hardware Part

ØSupply Voltage: DC12V

ØPower for Mechanism: < 10W

ØRotation Range: Pan 0°~360°continuously; Tilt - 70°~ + 20°

ØRotation Speed: Pan:2.7~35°/s Tilt: 1.8~13°/s

ØAngular resolution: 0.05

ØRepeat positioning accuracy: 0.25

ØOperating Temperature: -30°- + 55℃（Without heating）

ØThe transmission way: Precision straight gear drive

ØCoordinate resets: 199

ØMessage return function: 50ms

ØBaud Rate: 9600bps

ØCommunication Format: RS485/RS422/Network communication

ØCommunication Protocol: Pelco-D

ØMax Load: 5kg

ØProtection Level: IP66

ØSelf-weight: 3.5kg
